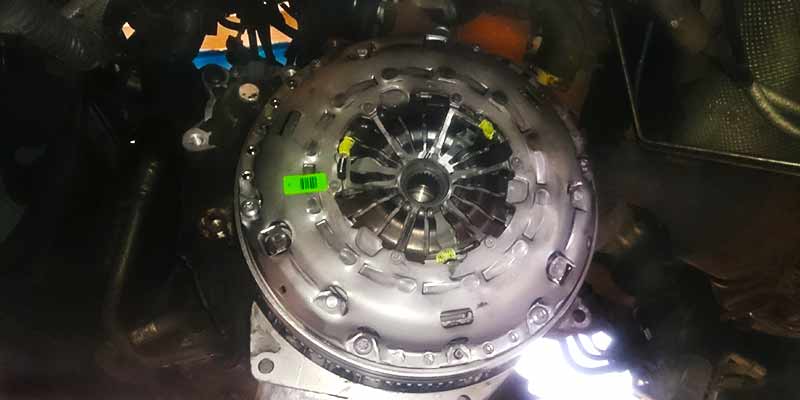

Pressure Plate
What Is It?
A diaphragm spring arranged around a thick central steel alloy plate.
What Is It’s Job?
When pressure is applied to the diaphragm spring the pressure plate moves back slightly which breaks drive transmission to the pressure plate.
Typical Issues
- Clutch slipping
- Excessive clutch noise
- Engine Revving Higher Than Usual
- Gears Difficult To Select
How To Fix
Replace your clutch pressure plate.
Friction Plate
What Is It?
A relatively thin circular outer metal alloy chassis attached to a metal splined center plate with a bonded heavy duty lined surface.
What Is It’s Job?
Clutch Pedal Up
Clutch pedal up your friction plate is sandwiched between the pressure plate and the engines flywheel allowing straight through one to one drive.
Clutch Pedal Down
When your clutch pedal is fully pressed the clutch pressure plate is forced away from the friction plate allowing the clutch friction plate to spin freely from drive.
Clutch Pedal midway
When you partially press your clutch pedal drive transfers at less than one to one. This is what you will recognise as clutch control.
Typical Issues
- Clutch slipping
- Excessive clutch noise
- Engine Revving Higher Than Usual
- Difficulty Selecting Gears
How To Fix
Replace your clutch friction plate.
Thrust Bearing
What Is It?
A circular metal alloy body containing bearings which allow the bearing face to spin freely.
What Is It’s Job?
As the bearing is thrust on to the pressure plates diaphragm central circular springs the thrust bearings face contacts and spins freely as the force operates the clutch pressure plate.
Typical Issues
- Clutch slipping
- Clutch juddering
- Excessive clutch noise
- Gear Selection Issues
How To Fix
Replace your clutch thrust bearing.
Specialists Clutch Services For All Manufacturers
- Honda
- Kia
- Skoda
- Alfa
- Nissan
Clutch Fork
What Is It?
A machined metal allow fork shape with pivots engineered towards the middle.
What Is It’s Job?
Transfers the motion action from your clutch cable or hydraulic system to the thrust bearing.
Typical Issues
- Clutch slipping
- Clutch juddering
- Clutch dragging
- Excessive clutch noise
How To Fix
Replace your clutch fork.
Hydraulic Clutch Operation
What Is It?
Consisting of a plastic hydraulic reservoir attached to a thick hollow metal alloy tube from which a pipe connects at one end. The clutch pedal linkage connects to the plunger seated inside the chamber at the other end.
What Is It’s Job?
When you press your clutch pedal the motion presses the plunger into the cylinder forcing hydraulic fluid under high pressure out of the cylinder, down the pipe to physically move the clutch fork via a slave cylinder.
Typical Issues
- Clutch slipping
- Clutch juddering
- Clutch dragging
- Excessive clutch noise
How To Fix
Look for fluid leaking around your clutch master and slave cylinders as well as any associated pipes and connections and replace accordingly. Check for worn cylinder seals at the pedal end.
Cable Clutch Operation
What Is It?
A simple sleeved wire–wound cable similar to a bikes brake cables but thicker to deal with the forces involved.
What Is It’s Job?
Attached between your clutch pedal and your clutch fork. When you press your clutch pedal this pulls the cables inner core which pulls the clutch fork at the other end operating your car’s clutch.
Typical Issues
- Clutch slipping
- Sloppy clutch pedal offering no resistance and no clutch
How To Fix
Replace your clutch cable.
